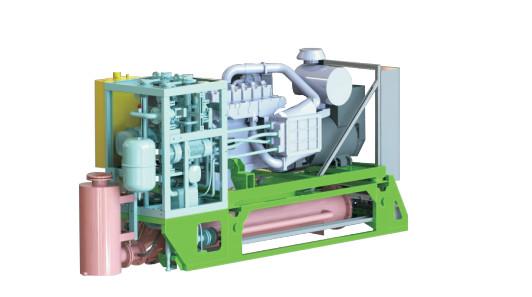

    1800rpm Chp Combined Heat Power 75kW Power Engine Generator

    Ask Lasest Price
    Price : Negotiable
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    1800rpm Chp Combined Heat Power 75kW Power Engine Generator

    75kW CHP Combined Heat Power


    Descriptions

    1. AC synchronous alternator

    2. Gas safety train and gas protection device against leakage

    3. Exhaust and jacket water heat exchanger

    4. Heating water and jacket water circulation system

    5. Expansion tank and water jacket heater

    6. Advanced engine control system, including: ignition system, detonation control system ,

    speed control system , air/fuel ratio control system and cylinder temp. protection system

    7. Strict shop test for all CHP unit

    8. Industrial silencer reduces the noise by 12-20dB(A)

    9. Unattached switch cabinet and electric control cabinet

    10. Multi-functional control system with easy operation


    ModelEfficiencyFuel TypeEngine ModelAlternatorGenset Controller
    Elec.ThermalTotalManufacturerModelManufacturerModel
    JIG75NSC-M36.2%51.5%87.7%Natural GasU08254NSTAMFORDUCI 224SmartGenHGM 9510
    JIG75BSC-M35.5%51.5%87.0%BiogasU08254BSTAMFORDUCI 224SmartGenHGM 9510
    JIG75N6SC-M36.2%51.5%87.7%Natural GasU08254NSTAMFORDUCI 224SmartGenHGM 9510
    JIG75B6SC-M35.5%51.5%87.0%BiogasU08254BSTAMFORDUCI 224SmartGenHGM 9510

    GensetGenset ModelJIG75NSC-MJIG75BSC-MJIG75N6SC-MJIG75B6SC-M
    Prime RatingkW75757575
    KVA93.7593.7593.7593.75
    Standby PowerkW82.582.582.582.5
    KVA103.125103.125103.125103.125
    Rated VoltageV230/400230/400230/400230/400
    Rated CurrentA135.3135.3135.3135.3
    Power Factor-0.80.80.80.8
    Rated FrequencyHz50506060
    Rated Speedrpm1500150018001800
    CHP parametersHeat OutputkW106.7108.8106.7108.8
    Flow of Hot-waterT/h4.454.454.454.45
    Thermal%51.551.551.551.5
    Total%87.787.787.787.7
    Note: Based on 70 ℃ input hot water and 90 ℃ output water.

    SpecDimensions (Open)
    (L × W × H)
    mm2140×900×1750
    Net Weight (Open)kg1120
    Dimensions
    (Silent Canopy)
    (L × W × H)
    mm3200×1100×1450
    Net Weight
    (Silent Canopy)
    kg1550
