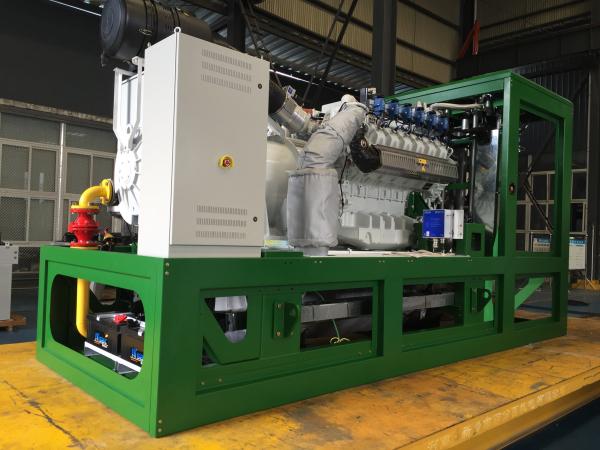

500kW Genset of Gas Generator Sets


Special statements

1. The technical data are based on a gas mixture of 60% methane and 40% carbon dioxid with a calorific value of 60 kWh/Nm³ and a methane no. > 100
2. The technical data is measured in standard conditions: Absolute atmospheric pressure:100kPa Ambient temperature:25°C Relative air humidity:30%
3. Rating adaptation at ambient conditions acc to DIN ISO 3046/1. The tolerance for the specific fuel consumption is + 5 % at rated output.
4. Dimension and weight above are just for standard product ,and may be subject to change. As this document is used only for presale reference, take the specification supplied by JIGREN before

Spec	Dimensions (Open) (L × W × H)	mm	5200×1600×2010
	Net Weight (Open)	kg	5750
	Dimensions (Silent Canopy) (L × W × H)	mm	6058×2438×2591
	Net Weight (Silent Canopy)	kg	4000

Other than base engine suppliers, Jigren supplies fully functional and customer tailored power packages for easier handling of your production and services for your customers. we can:

1. Redesign and re-calibrate for your specific power requirements

2. Redesign and reconfigure for your fuel type and energy specs

3. Fully packaged for easier end production of power units

4. Create Innovations to add value to your power products

Our core technology is gas engine electronic control systems which is the only one capable of utilizing natural gas to power oil drilling rig because it is totally competitive to handle sudden load working conditions where require the most effective transient responsiveness and reliability.

We have been listed as official supplier of Gas Engine Electronic Control System to CNHTC（SinoTruk），SDEC and YuChai, who are the major OEMs in China, for their heavy-duty truck application. We are dedicated to building a better world through cleaner energy.
